GLOBAL POWEREX AUTOMATIC CONTROL PANEL SET MOUNTED

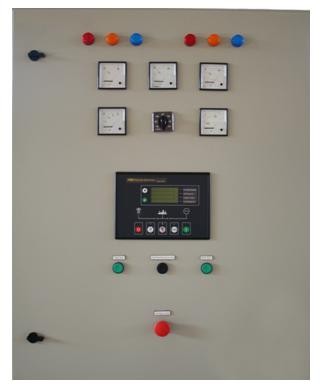

amf_1

WALL MOUNTED OR SET- MOUNTED

: SPECIFICATION

Self-standing ip54 cubicle with front and rear access. H-

Cable entry from the bottom.H-

Enameled electrostatic powder painting ral 7035.H-

Inlet air filter.H-

Outlet air fan & filter.H-

Panel lighting and fan with micro switch.H-

Bus bars from %99cu.H-

Two motorized circuit breaker with releasing and closing facilities or pair of contactors. H

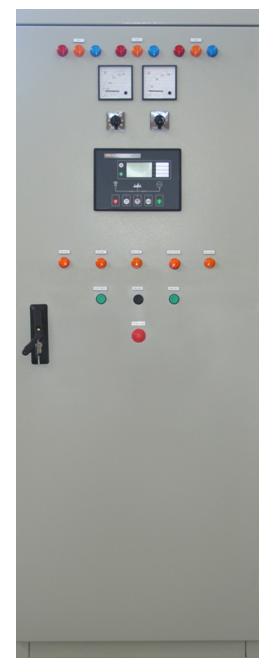

Protection circuits with fuse holder.Hamf 2-

Electronic automatic battery charger.H-

.Water jacket heater feeder-

.Audible alarm-

Metering

The panel provides metering via

The LCD display with the following

Instrumentation displays, accessed via the

LCD DISPLAY SCROLL push buttons : H

Generator Volts L1-N, L2-N, L3-N

Generator Volts L1-L2, L2-L3, L3-L1

Generator Amps L1, L2, L3

Generator Frequency Hz

Engine Speed RPM

Engine Oil Pressure

Fuel Level % H

Engine Coolant Temperature

Plant battery Volts

Engine Hours Run

Generator KVA

Generator KW

Generator Cos

Mains Volts L1-N, L2-N, L3-N

Mains Volts L1-L2, L2-L3, L3-L1

Mains Amps L1, L2, L3 (Optional) H

Mains Frequency Hz                                                                                                                                                    SELF STANDING

Multiple alarm channels

Provided to monitor the following: H

Under/Over Generator Volts

Over-currentselfsta

Under/Over Generator Frequency

Under/Over speed

Charge Fai

Emergency Stop

Low oil pressure

High engine temperature

Fail to Stop

Fail to Start

Low/High DC Battery Volts

Low Fuel Alarm

Loss of speed sensing signal

Mains out of limits

Mains Under Volts

Mains Over Volts

Mains Under Freq

Mains Over Freq

Earth Fault Protection
